Ipv4 Port forwarding for Instances

The Challenge:

Instances running on the Aleph network are natively assigned IPv6 addresses. This provides a vast address space and modern networking features. However, it presents a connectivity challenge: users and services on the legacy IPv4 internet cannot directly reach these IPv6-only instances. This feature provides the necessary translation layer to bridge that gap.

The Solution: An Automated IPv4-to-Instance Gateway

This feature allows you to expose a specific TCP/UDP port on your private IPv6 instance to the public IPv4 internet. It works by creating a forwarding rule on a public-facing Compute Resource Node (CRN) IPv4 address, which acts as a gateway.

Up to 20 internal ports might be forwarded per instance.

Requirements

This feature is available to all Instance running on Compute resource nodes newer than version 1.6.0. No special configuration is needed on the Node operator parts.

Usage

How to configure port forwarding for your instance

From the aleph cloud web app

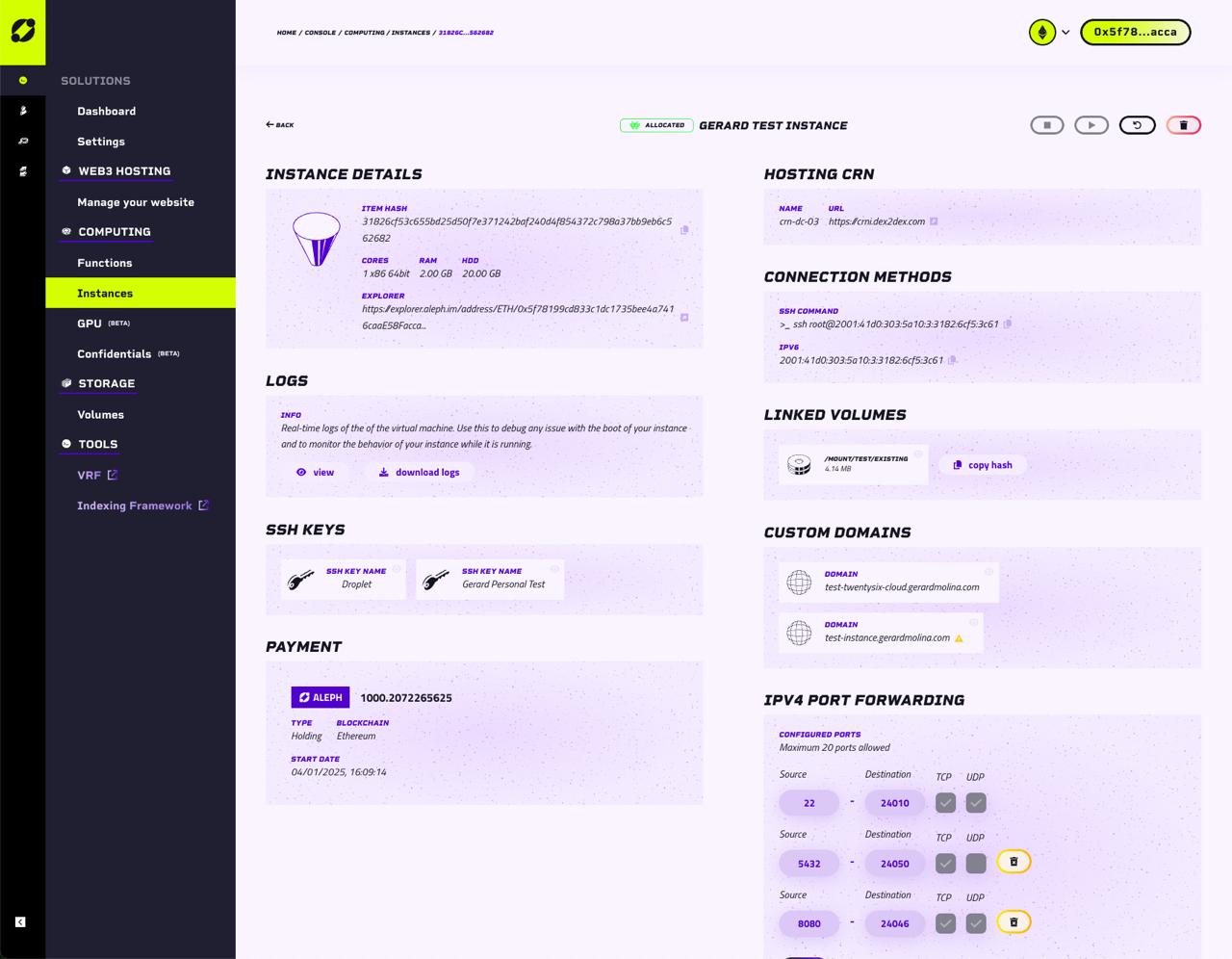

Port-forwarding domain can be configured in your instance configuration page https://app.aleph.cloud/console

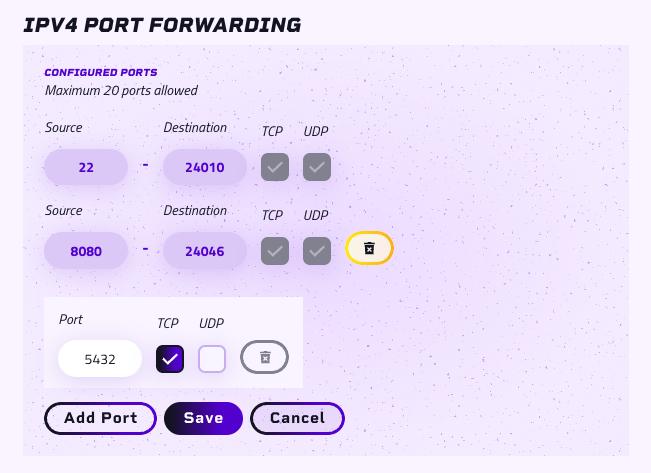

From there you will be able to show, add, modify and remove ports.

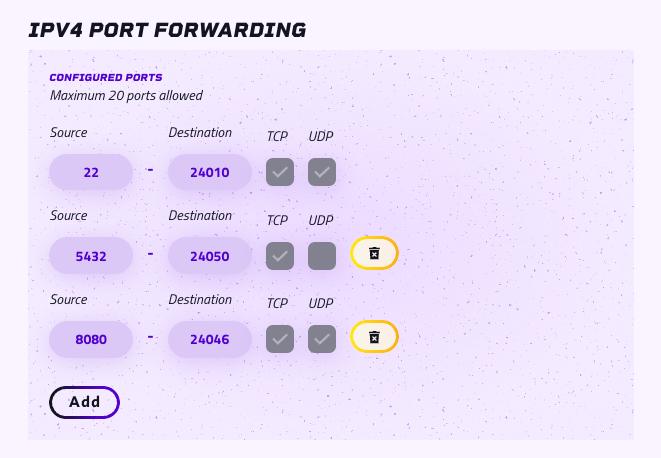

After adding a port, the external port will be shown after a minute or so. When setup is complete, the port on the instance will be accessible using the CRN domain name or ip and the external port.

If a custom domain name has been set up for your instance, it might also be used. To check if the custom domain was properly setup the dns should resolve to the hosting CRN ipv4 ip.

From the aleph CLI

Port forwarding for your instance can be managed via the port-forwarder subcommand group.

The list of command can be seen using aleph instance port-forwarder

Create a new port forwarding

Set up a forward for your address using :

aleph instance port-forwarder create <instance hash> <port>

For example :

aleph instance port-forwarder create a8a2d6ad3858e1eedc985d89c33ab6898babe6ae5d68ce3cdafc78d20dbe4cd8 22

The port forwarding may take one minute or so to set up.

You can check on which external port your internal port is exposed, using the aleph instance list command

After setup is complete, you can access your instance using the CRN domain name or ip and the external port.

If a custom domain name has been set up for your instance, you may also use it. To check if it is properly setup the dns should resolve to the hosting CRN ipv4 ip.

Troubleshooting

If it fails to set up, you can try forcing a refresh using the refresh command

aleph instance port-forwarder  refresh

List port forwarding

 aleph instance port-forwarder list

aleph instance port-forwarder list
Getting port forwards for address: 0x23C7A99d7AbebeD245d044685F1893aeA4b5Da90
                                                   Port Forwards
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┯━━━━━━━━━━━━━━━━━━━━━━━━━━━━┯━━━━━━┯━━━━━┯━━━━━┓
┃ Item Hash                                                        │ Name                       │ Port │ TCP │ UDP ┃
┠──────────────────────────────────────────────────────────────────┼────────────────────────────┼──────┼─────┼─────┨
┃ a8a2d6ad3858e1eedc985d89c33ab6898babe6ae5d68ce3cdafc78d20dbe4cd8 │ test olivier c             │ 22   │ +   │ -   ┃
┗━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┷━━━━━━━━━━━━━━━━━━━━━━━━━━━━┷━━━━━━┷━━━━━┷━━━━━┛
╔══════════════════ Port Forward Info ══════════════════╗
║                                                       ║
║  Address: 0x23C7A99d7AbebeD245d044685F1893aeA4b5Da90  ║
║                                                       ║
╚═══════════════════════════════════════════════════════╝

More information

More help is available from the aleph command online help system which can be invoked via:

aleph instance port-forwarder --help
